• Model: NR230-3-W
• Brand: Belimo
• Voltage: 230 VAC, 50/60 Hz
• Control: 3-point / floating control
• Torque: 10 Nm
• Running time: 140 sec / 90°
• Protection: IP40
• Cable: 3 wires, 1 m cable
• Use: mixing valve / rotary actuator

• rand: DEOS / DEOS AG
• Model: PLD20-24
• Type: air damper / flap rotary actuator
• Torque: 20 Nm
• Voltage: 24 VAC/DC
• Control: depends version: standard, CAN, BACnet, or 0–10 V version
• Use: HVAC air damper / ventilation flap positioning
• Application size: about large damper, similar 20 Nm actuators suit up to around 4 m² damper area
• Running time: commonly around 150 sec / 95° for similar 20 Nm 24 V actuators

PLD-10-24-CAN – small points

• Model: PLD-10-24-CAN
• Torque: 10 Nm
• Voltage: 24 VDC
• Communication: CAN / CANopen
• Type: electric actuator / damper actuator / valve actuator likely
• Control: via CAN command, not simple ON/OFF only
• Use: HVAC damper, valve, automation positioning

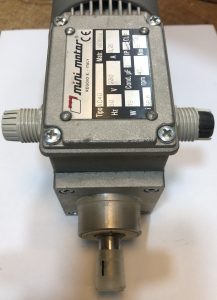

• Model / Type: AC40
• Voltage: 230 VAC
• Frequency: 50 Hz
• Current: 0.26 A
• Power: 19 W
• Speed: 58.6 rpm output speed
• Torque: 5 Nm
• Capacitor: 2 µF
• Protection: IP20
• Gear ratio: i = 47
