PLC
Industrial Programable Control
Modicon PC-E984-265
| Spec | Value |
|---|---|
| Manufacturer | Schneider Electric / Modicon |
| Product type | TSX Compact / Compact 984 PLC CPU |
| Memory | 8K logic, 16K data |
| Communication ports | 2 × Modbus + 1 × Modbus Plus |
| Power supply | 24 VDC, about 1 A |

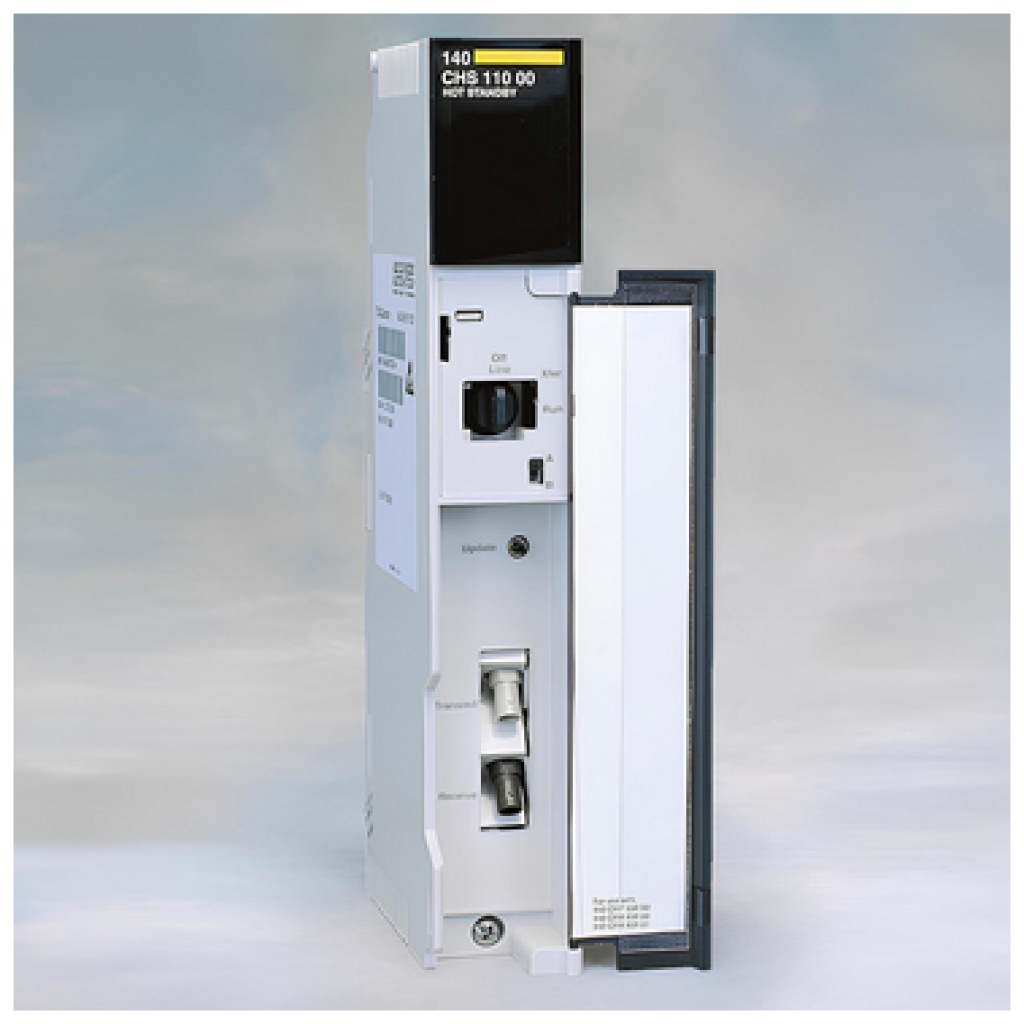

Modicon-140CHS1100
hot standby module
| Spec | Value |
|---|---|
| Manufacturer | Schneider Electric / Modicon |
| Product type | Quantum Hot Standby module |
| Function | Redundancy / hot-standby link between two Quantum PLC CPUs |
| Transmission rate | 10 Mbit/s |
| Operating temperature | 0 to 60 °C |
Modicon – 140CPS11100
Power Supply
| Spec | Value |
|---|---|
| Manufacturer | Schneider Electric / Modicon |
| Product type | Quantum power supply module |
| Power supply type | Standalone |
| Input voltage | 120–230 VAC, usable range 100–276 VAC, 47–63 Hz |
| Output | 5.1 VDC, 3 A |
Siemens-6ED1-053-1FB00-0BA0 (LOGO)
| Spec | Value |
|---|---|
| Manufacturer | Siemens |
| Product type | LOGO! digital expansion module |
| Module type | DM8 230R |
| Inputs / outputs | 4 digital inputs + 4 relay outputs |
| Supply / signal voltage | 115/230 VAC |
Siemens – 6ED1052-1HB08-0BA2 (LOGO)
| Spec | Value |
|---|---|
| Manufacturer | Siemens |
| Product type | LOGO! 24RCE logic module with display |
| Supply / I/O voltage | 24 VAC / 24 VDC, relay output type |
| Inputs / outputs | 8 digital inputs + 4 relay outputs |
| Main features | Ethernet, integrated web server, data logging, microSD card support |
KEYENCE KV-24DT
| Spec | Value |
|---|---|
| Manufacturer | KEYENCE |
| Product type | Visual KV Series PLC base unit |
| Power supply | 24 VDC, +10% / -20% |
| Inputs / outputs | 16 DC inputs + 8 transistor outputs |
| Operating temperature | 0 to 50 °C |
Keyence KV-E8R – EXPANSION MODULE
| Spec | Value |
|---|---|
| Manufacturer | KEYENCE |
| Product type | PLC output expansion module |
| Outputs | 8 relay outputs |
| Rated load | 250 VAC / 30 VDC |
| Output current | 2 A/output inductive load, 4 A/output resistive load, 4 A/common |
Siemens -EM-222 – Expansion Module
| Spec | Value |
|---|---|
| Manufacturer | Siemens |
| PLC family | SIMATIC S7-200 |
| Product type | Digital output expansion module |
| Typical variants | 4 or 8 digital outputs, relay / transistor / AC output versions |
| Mounting | DIN-rail / S7-200 side expansion |
GANTNER ISM110 – Sensor Module
| Spec | Value |
|---|---|
| Manufacturer | Gantner Instruments |
| Product type | Intelligent sensor module / signal-conditioning module |
| Analog inputs | 4 analog input channels |
| Digital I/O | 2 digital I/O channels |
| Function | Programmable module for sensor acquisition, processing, and transmission to PLC/PC systems |
