Gate Way
ASI-3.1 ProfiBus
| Spec | Value |
|---|---|
| Product type | AS-i 3.1 to PROFIBUS gateway |
| Main function | Connects AS-Interface sensors/actuators to a PROFIBUS-DP PLC network |
| Fieldbus side | PROFIBUS-DP |
| AS-i side | AS-Interface 3.1 network |
| Typical use | Machine I/O, sensors, actuators, safety/automation network integration |

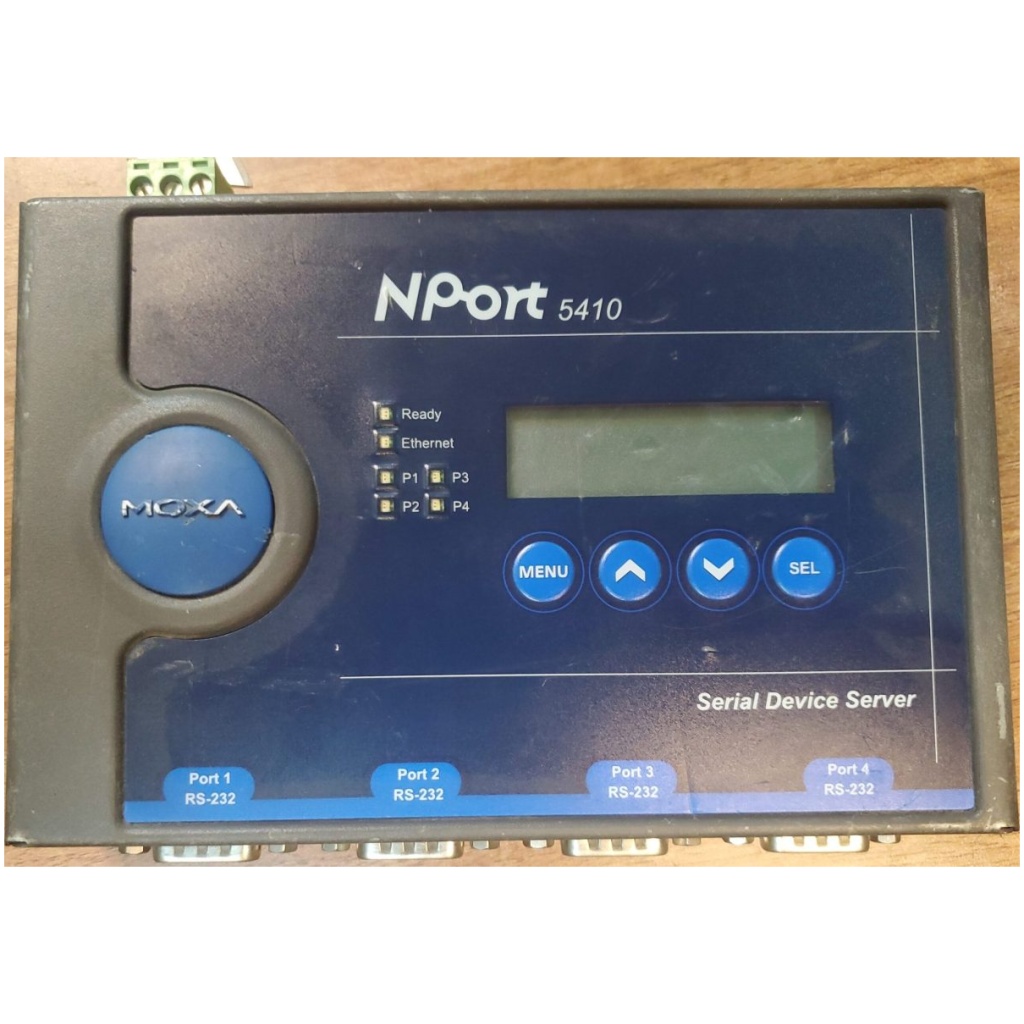

NPort 5410 – Moxa
| Spec | Value |
|---|---|
| Manufacturer | Moxa |
| Product type | Serial device server / serial-to-Ethernet converter |
| Serial ports | 4 × RS-232 ports, DB9 male |
| Ethernet | 10/100Base-T(X) RJ45 Ethernet |
| Power supply | 12–48 VDC, dual power input |

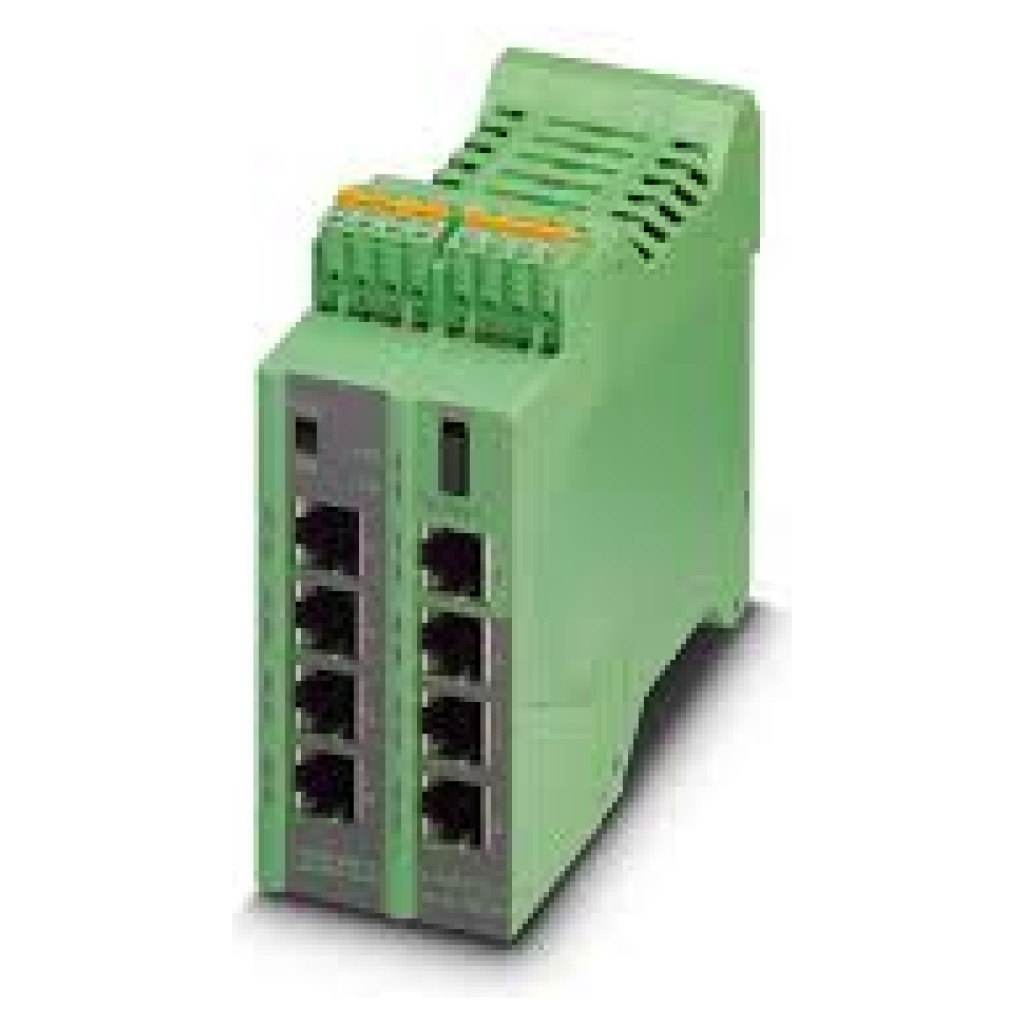

FL HUB 8TX-ZF – Phoenix
ATEX II 2G c IIB T3 Gb
| Spec | Value |
|---|---|
| Manufacturer | Phoenix Contact |
| Product type | Industrial Ethernet hub |
| Ports | 8 × RJ45 twisted-pair ports |
| Network speed | 10 / 100 Mbps Ethernet |
| Mounting / protection | DIN rail mount, IP20 |

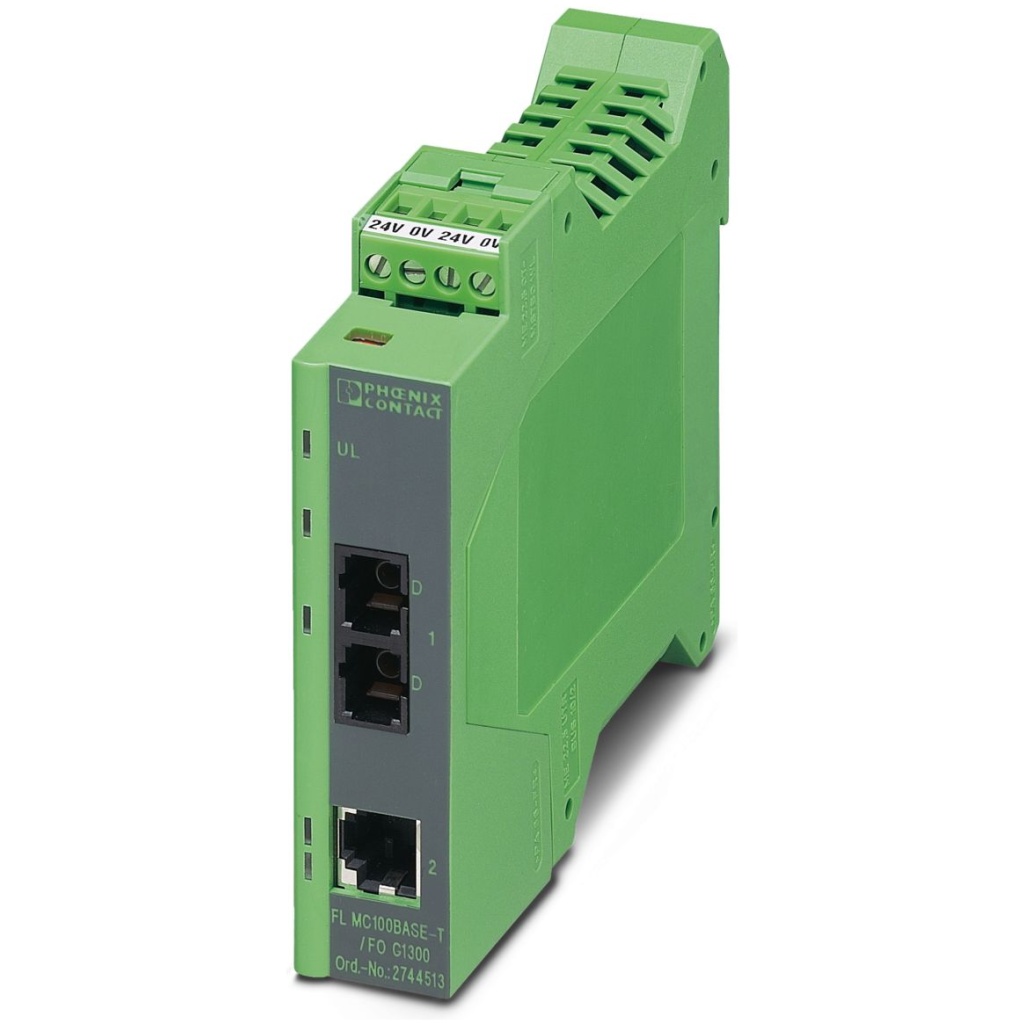

FL MC 10/100BASE-T/FO G1300 – FO converters
ATEX II 2G c IIB T3 Gb
| Spec | Value |
|---|---|
| Manufacturer | Phoenix Contact |
| Function | Converts 10/100Base-T(X) Ethernet copper to fiber optic |
| Copper port | RJ45 Ethernet, 10/100 Mbps |
| Fiber type | Multimode fiberglass, typically 1300 nm |
| Power supply | 24 VDC, DIN-rail mountable |

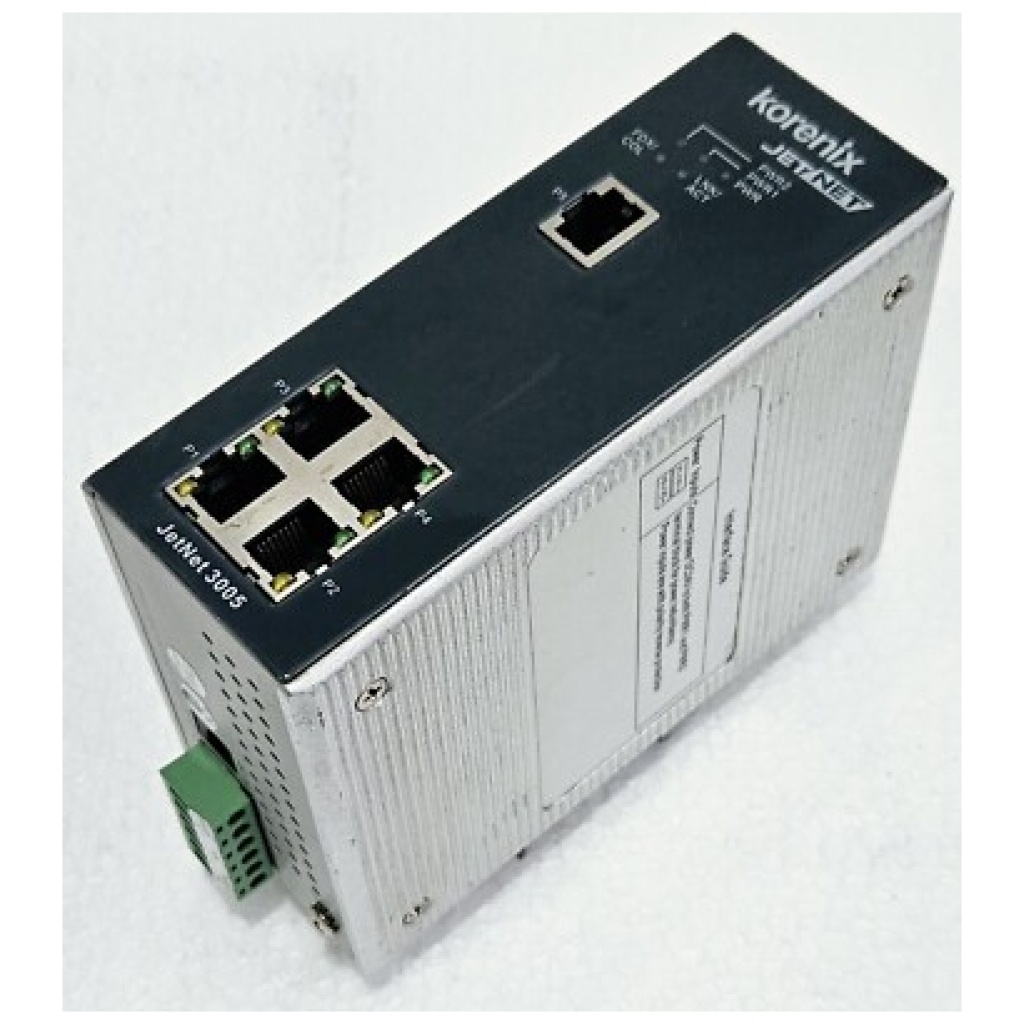

JETNET 3005 – Korenix
| Spec | Value |
|---|---|
| Manufacturer | Korenix |
| Product type | Industrial unmanaged Ethernet switch |
| Ports | 5 × RJ45 10/100Base-TX |
| Switching capacity | 3.2 Gbps switch fabric |
| Power input | Redundant DC input, 12–48 VDC |
EMI-1R RS232/RS485 CONVERTER
| Spec | Value |
|---|---|
| Manufacturer | Contrel Elettronica / Microener |
| Function | RS232 / RS485 serial converter and RS485 bus repeater |
| Mounting | DIN-rail mounting |
| Isolation | Opto-isolated communication interface |
| Power supply | 220–240 VAC, with 110–120 VAC on request |

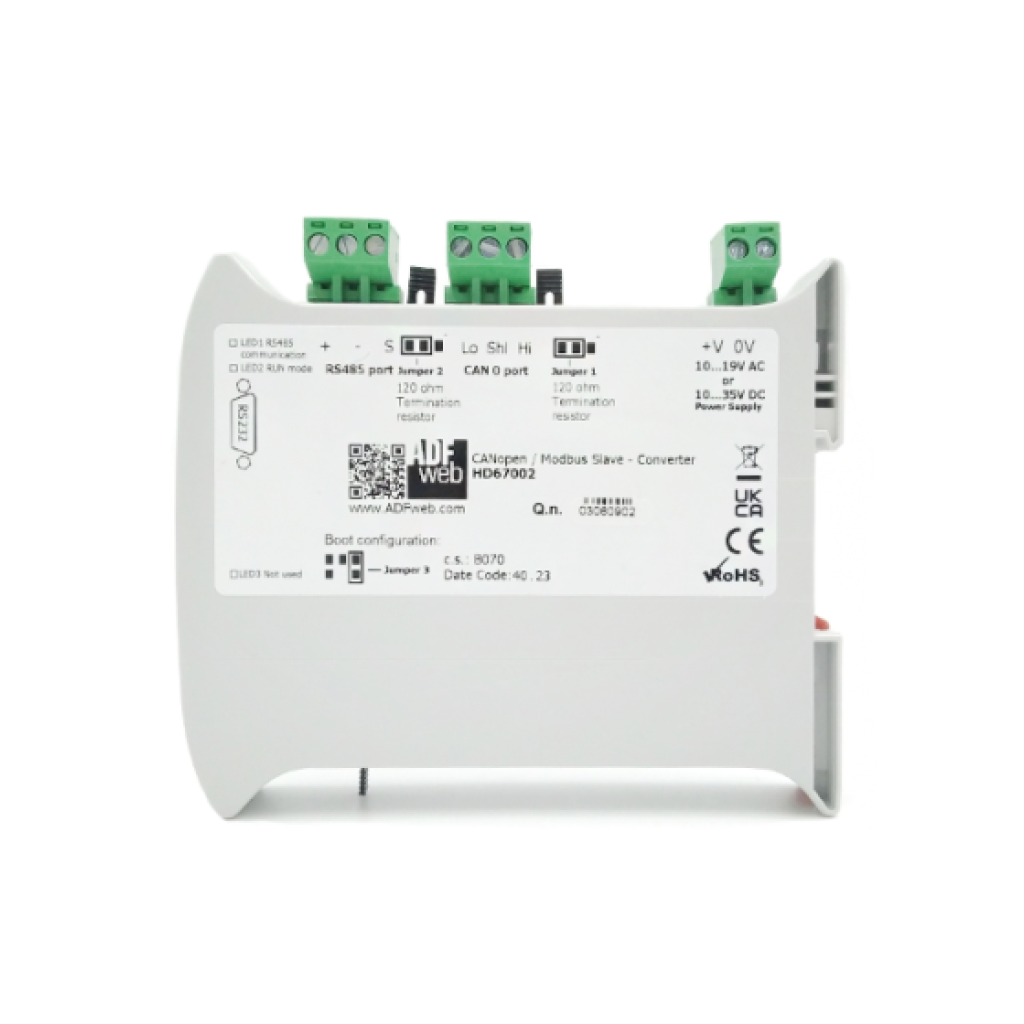

HD67002 – CAN Router – Modbus
| Spec | Value |
|---|---|
| Manufacturer | ADFweb |
| Function | CANopen to Modbus RTU Slave converter |
| Interfaces | 1 × CANopen, 1 × RS485, 1 × RS232 |
| Power supply | 10–19 VAC or 10–35 VDC |
| Operating temperature | -40 to +85 °C |

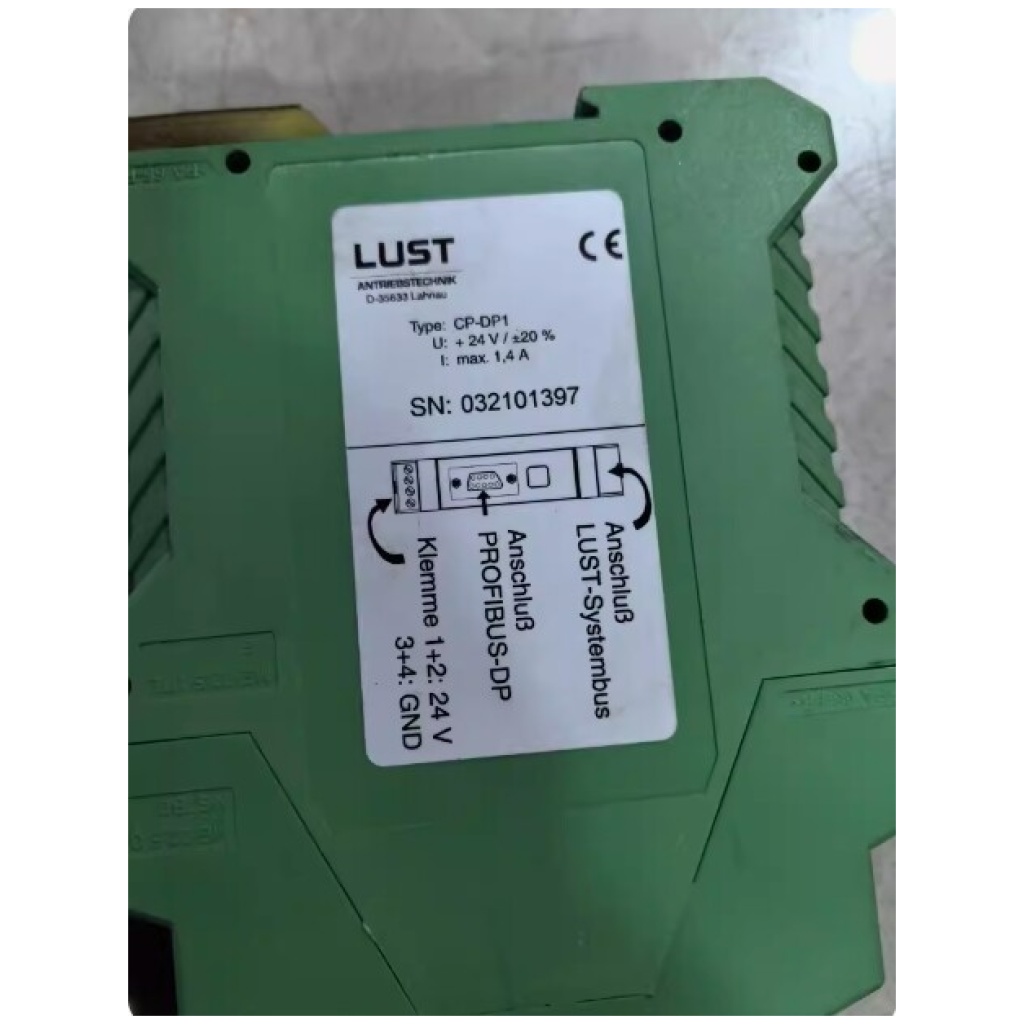

Lust Profibus DP Gateway
| Gateway type | Example product / brand | Use case |
|---|---|---|
| PROFIBUS-DP ↔ Modbus TCP | Anybus Communicator ABC4018 | Connect Modbus TCP system to PROFIBUS-DP network. (hms-networks.com) |
| PROFIBUS-DP Master ↔ Modbus TCP Server | Softing mbGate DP | Integrate existing PROFIBUS-DP segment into Modbus TCP control system. It works as PROFIBUS-DP Master. (industrial.softing.com) |
| PROFIBUS-DP ↔ PROFINET / EtherNet/IP / Modbus TCP | Helmholz PROFIBUS DP to Ethernet Gateway | Good for Siemens/Allen-Bradley/Ethernet migration; supports PROFINET, EtherNet/IP, Modbus TCP. (Helmholz Benelux) |
| PROFIBUS-DP ↔ PROFIBUS-DP | Helmholz DP/DP Coupler | Connect two separate PROFIBUS-DP networks or two PLC masters. (helmholz.de) |
| Real-Time Ethernet ↔ PROFIBUS-DP | Hilscher / netTAP 100 | Multi-protocol gateway for advanced conversions. (Helmholz Benelux) |
| PLC/Automation gateways | ProSoft Technology Gateways | Industrial protocol conversion for PLC systems. (de.prosoft-technology.com) |
