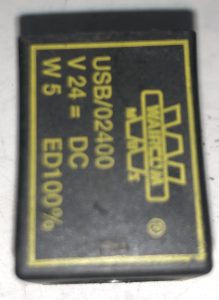

Waircom USB/02400 is a 22mm 24VDC solenoid valve coil rated at 5W, used for Waircom pneumatic solenoid valves with Ø9mm sleeve. It is suitable for direct-acting solenoid valves, modular valve bases, air control systems, and industrial automation pneumatic applications.
Categories: PNEUMATIC, Solenoid Valve
Manufacturer: Waircom MBS
- Description
- Specifications
- Brand: Waircom / Waircom MBS
- Model: USB/02400
- Type: solenoid valve coil
- Coil size: 22 mm
- Voltage: 24 VDC
- Power consumption: 5 W
- Duty cycle: ED 100% continuous duty
- Insulation class: Class H, 180°C
- Working temperature: -30 to +40°C basic version
- Voltage tolerance: -10% / +10%
- Electrical connection: DIN 46244 type connector / 3-pin connector
- Valve sleeve size: for solenoid valves with Ø9 mm sleeve
- Use: coil for Waircom pneumatic solenoid valves, direct-acting valves and modular bases
