E3578-354
Home / Shop
E3578-354
JOD JOD240.00
A one-time price of JOD JOD240.00 will be added to your order.
1 Left in Stock
Maximum purchase amount of 1 is allowed
The Oriental Motor E3578-354 is an industrial 100 W, 200 VAC geared motor designed for applications requiring reduced speed and increased output torque. It is mainly available today through used industrial automation and surplus equipment suppliers
Categories: Motors
Manufacturer: Oriental Motor - Japan
- Description
- Specifications
- Manufacturer: Oriental Motor
- Model: E3578-354
- Motor Power: 100 W
- Rated Voltage: 200 VAC
- Type: AC geared motor / speed-reduction motor
- Application: Industrial machinery, conveyors, positioning and automation drives
- Condition: Commonly found as used / surplus stock; detailed OEM specifications appear difficult to locate online
- Manufacturer: Oriental Motor
- Model: E3578-354
- Motor Power: 100 W
- Rated Voltage: 200 VAC
- Type: AC geared motor / speed-reduction motor
- Application: Industrial machinery, conveyors, positioning and automation drives
- Condition: Commonly found as used / surplus stock; detailed OEM specifications appear difficult to locate online.
UGTMEM-06MHK21
Home / Shop
UGTMEM-06MHK21
JOD JOD420.00
A one-time price of JOD JOD420.00 will be added to your order.
1 Left in Stock
Maximum purchase amount of 5 is allowed

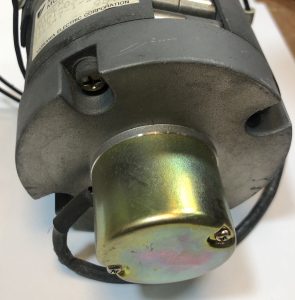

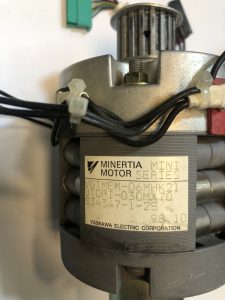

Model UGTMEM-06MHK21
Manufacturer / Series Yaskawa Minertia Motor Mini Series
Motor type Brushed DC servo motor with feedback/tacho unit UTOPI-030MX70
Voltage Usually 24–48 VDC servo armature for UGTMEM-06 family
Rated speed approx. 1000 rpm for UGTMEM-06M class
Manufacturer / Series Yaskawa Minertia Motor Mini Series
Motor type Brushed DC servo motor with feedback/tacho unit UTOPI-030MX70
Voltage Usually 24–48 VDC servo armature for UGTMEM-06 family
Rated speed approx. 1000 rpm for UGTMEM-06M class
Categories: Motors
Manufacturer: Yaskawa - Japan
- Description
- Specifications
| Model | UGTMEM-06MHK21 |
| Manufacturer / Series | Yaskawa Minertia Motor Mini Series |
| Motor type | Brushed DC servo motor with feedback/tacho unit UTOPI-030MX70 |
| Voltage | Usually 24–48 VDC servo armature for UGTMEM-06 family |
| Rated speed | approx. 1000 rpm for UGTMEM-06M class |
| Rated torque | approx. 0.657 N·m = 6.7 kg·cm |
| Peak torque | approx. 1.5 N·m = 15.3 kg·cm |
| Model | UGTMEM-06MHK21 |
| Manufacturer / Series | Yaskawa Minertia Motor Mini Series |
| Motor type | Brushed DC servo motor with feedback/tacho unit UTOPI-030MX70 |
| Voltage | Usually 24–48 VDC servo armature for UGTMEM-06 family |
| Rated speed | approx. 1000 rpm for UGTMEM-06M class |
| Rated torque | approx. 0.657 N·m = 6.7 kg·cm |
| Peak torque | approx. 1.5 N·m = 15.3 kg·cm |
GR80-24
Home / Shop
GR80-24
JOD JOD119.99
A one-time price of JOD JOD119.99 will be added to your order.
1 Left in Stock
Maximum purchase amount of 5 is allowed
GR80x40-24
24 VDC
0.38 N·m
2960 rpm
24 VDC
0.38 N·m
2960 rpm
Categories: Motors
Manufacturer: Dunkermotoren
- Description
- Specifications
- Type: Brushed DC motor
Frame size: about 80 mm diameter
Voltage options: 12, 24, 40, 48, 60 VDC
Power: up to about 224 W continuous, peak around 817 W
Torque: roughly 0.35 to 0.67 N·m nominal, depending length/version
Speed: around 2700–3400 rpm, depending voltage/model
Type: Brushed DC motor
Frame size: about 80 mm diameter
Voltage options: 12, 24, 40, 48, 60 VDC
Power: up to about 224 W continuous, peak around 817 W
Torque: roughly 0.35 to 0.67 N·m nominal, depending length/version
Speed: around 2700–3400 rpm, depending voltage/model
THM 3-0522
Home / Shop
THM 3-0522
JOD JOD28.00
A one-time price of JOD JOD28.00 will be added to your order.
2 Left in Stock
THM 3-0522 — TRACO Power medical isolated DC-DC converter
Type: Medical grade isolated DC-DC converter
Input: 4.5–9 VDC, nominal 5 VDC
Output: Dual output +12 VDC / −12 VDC
Current / power: 125 mA + 125 mA, total 3 W
Isolation: 5 kV reinforced isolation
Type: Medical grade isolated DC-DC converter
Input: 4.5–9 VDC, nominal 5 VDC
Output: Dual output +12 VDC / −12 VDC
Current / power: 125 mA + 125 mA, total 3 W
Isolation: 5 kV reinforced isolation
Categories: DC Converters
Manufacturer: Traco Power
- Description
- Specifications
THM 3-0522 — TRACO Power medical isolated DC-DC converter
- Type: Medical grade isolated DC-DC converter
- Input: 4.5–9 VDC, nominal 5 VDC
- Output: Dual output +12 VDC / −12 VDC
- Current / power: 125 mA + 125 mA, total 3 W
- Isolation: 5 kV reinforced isolation
- Package: DIP-24 through-hole, approx. 31.8 × 20.3 × 10.2 mm
- Input range: 2:1 wide input range
- Application: Medical equipment, isolated analog supply, instrumentation, communication boards
THM 3-0522 — TRACO Power medical isolated DC-DC converter
- Type: Medical grade isolated DC-DC converter
- Input: 4.5–9 VDC, nominal 5 VDC
- Output: Dual output +12 VDC / −12 VDC
- Current / power: 125 mA + 125 mA, total 3 W
- Isolation: 5 kV reinforced isolation
- Package: DIP-24 through-hole, approx. 31.8 × 20.3 × 10.2 mm
- Input range: 2:1 wide input range
- Application: Medical equipment, isolated analog supply, instrumentation, communication boards
