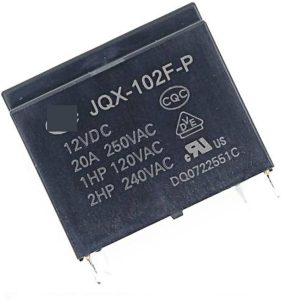

JQX-102F-P High-Power Relay
Home / Shop
JQX-102F-P High-Power Relay
JOD JOD15.00
A one-time price of JOD JOD15.00 will be added to your order.
1 Left in Stock
Maximum purchase amount of 1 is allowed
JQX-102F-P relay, JQX 102F power relay, 20A 250VAC relay, 80A inrush relay, SPST NO power relay, PCB motor relay, air conditioner relay, heater relay, high current PCB relay.
Categories: Power Relay
Manufacturer: HONGFA -CHINA
- Description
- Specifications
- Type: Miniature high-power PCB relay
- Contact form: SPST-NO / 1 Form A
- Contact rating: 20 A @ 250 VAC
- Maximum switching capacity: 5000 VA
- Motor switching: suitable for motor loads
- Inrush capability: up to 80 A for 0.3 s
- Coil power: about 0.9 W DC
- Dielectric strength: about 4.5 kVAC coil-to-contact
- Mounting: PCB, typically 4-pin configuration
- Type: Miniature high-power PCB relay
- Contact form: SPST-NO / 1 Form A
- Contact rating: 20 A @ 250 VAC
- Maximum switching capacity: 5000 VA
- Motor switching: suitable for motor loads
- Inrush capability: up to 80 A for 0.3 s
- Coil power: about 0.9 W DC
- Dielectric strength: about 4.5 kVAC coil-to-contact
- Mounting: PCB, typically 4-pin configuration
